RW12 Series 33KV Drop out Fuse

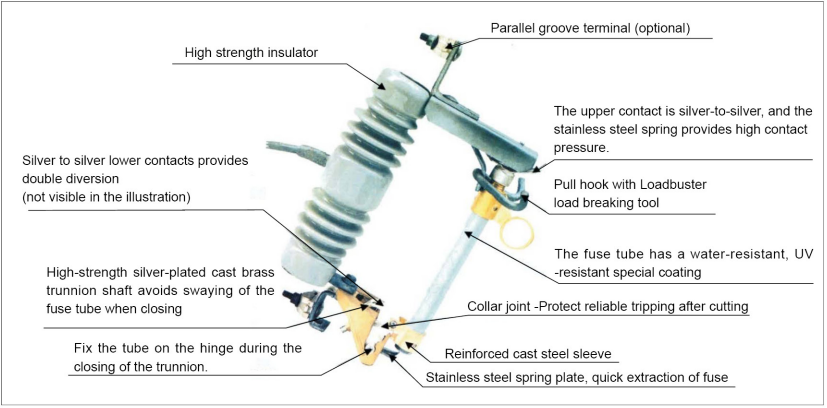

RW12 Series 33KV Drop out Fuse are outdoor high-voltage protection appliances. It is installed on the high voltage side of the distribution transformer or on the branch line of the distribution line. 33kv drop out fuse is used as short circuit, overload protection and split and combined load current of the transformer and line. The Drop-out fuse consists of two parts: an insulating bracket and a fuse tube.The static contact is installed at both ends of the insulating bracket, the movable contact is installed at both ends of the fuse tube, and the fuse tube is composed of the arc extinguishing tube of the inner layer and the phenolic paper tube or the epoxy glass tube of the outer I aye r. Control load Drop-out fuse enhanced auxiliary contact and arc extinguishing cover, which is used to split and combined load current.

Fuse Link …“KB、KU、KS” type

Types and Applications
"KB, KU, KS"type belong to"K"and"T"type fuse links. According to I EC-282 standard, there are three types: common type, universal type and threaded type. It is suitable for 11~33kV voltage class drop-out fuse.

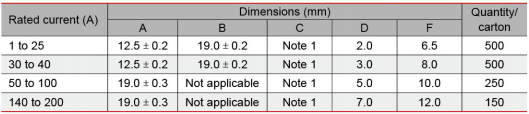

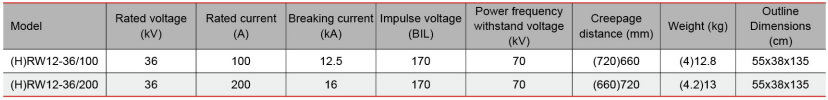

Technical data

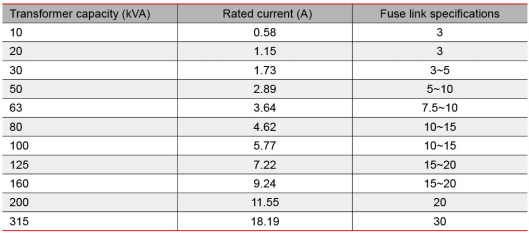

Fuse link selection

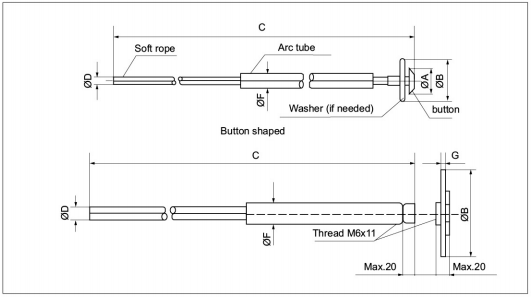

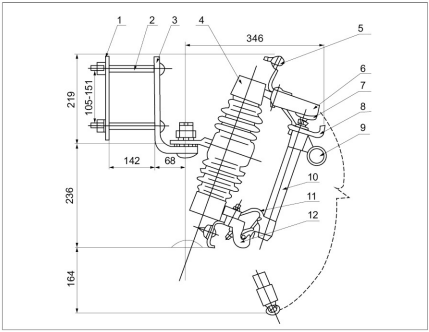

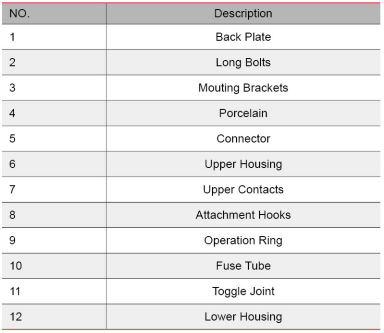

Structure size

Order information
1. Product model, name, rated voltage, rated current, and rated breaking current;

2. Environmental requirements (anti-pollution type, highland type);
3. Special requirements can be talked with the manufacturer.

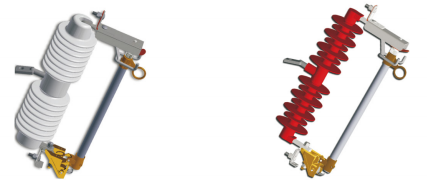

RW12-33KV drop-out fuse (Export-type)

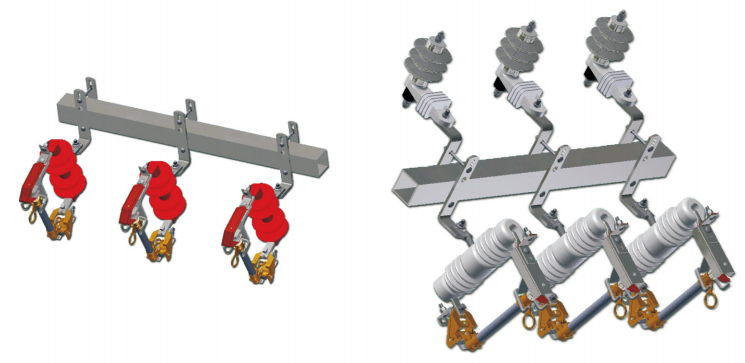

Drop-out fuse Installation diagram (Export-type)

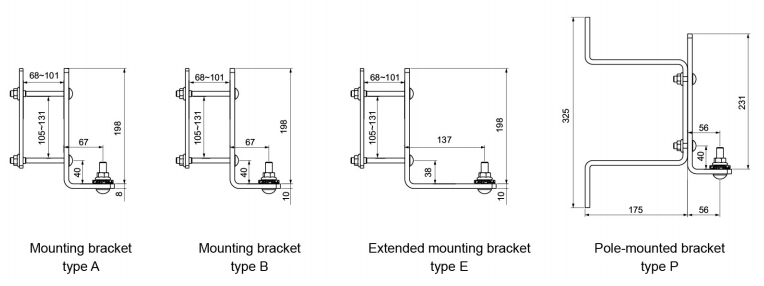

Drop-out fuse mounting bracket (Export-type)
