Customized electrical power distribution box for sale supplier in China, with excellent low voltage distribution box design team. Buy bulk and wholesale medals from us.
JXF Metal Enclosure provide Control, monitering, measurement and protection for the electric power loops and main power controlling equipment.

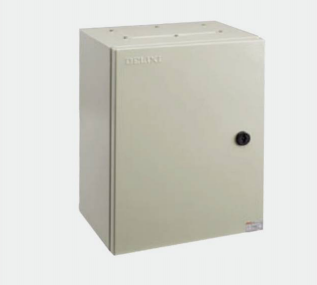

low voltage distribution box

1. Rated voltage: AC 230V/400V
2. Installation method: Open-mounted type5 Protection grade: IP43
3. Standard: GB/T 17466.1 GB/T 17466.24
4 Name: Open-mounted power distribution box (cabinet)
5. Usage category: GP9 Rated current: 125A
6. Ambient temperature: -5 C-+60 C11 Max. power consumption capacity: 60W
7. 3C certification mark

Normal Operation, Installation and Transport Conditions

(1) Open-mounted: Installed on the non-combustible walls,

(2Temperature range during installation: -15 C-+60 C.

(3)Max. temperature during theroom construction: +60 CInstall the .XF distribution box (cabinet)

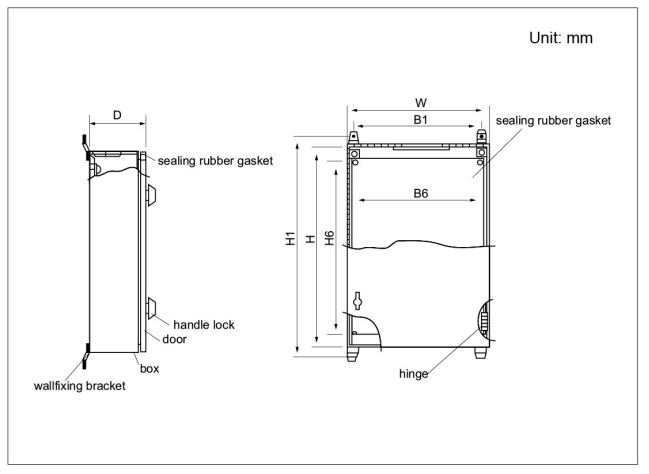

Outline and installation Dmnensions

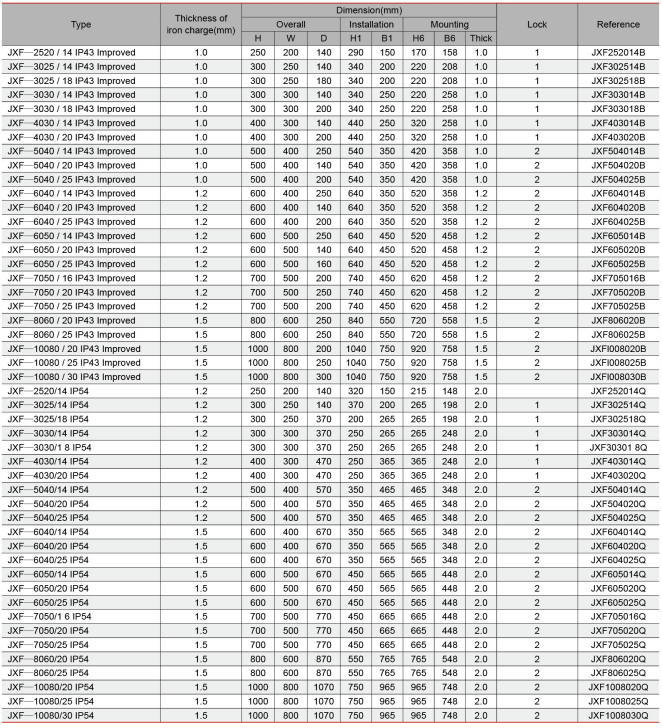

Order Information

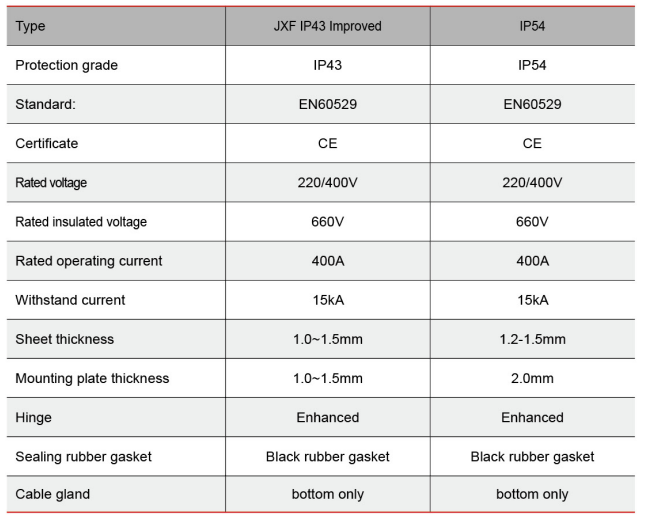

Technical Data
