Insulated Tube Connector
LGCT
Quantity
Insulated Tube Connector

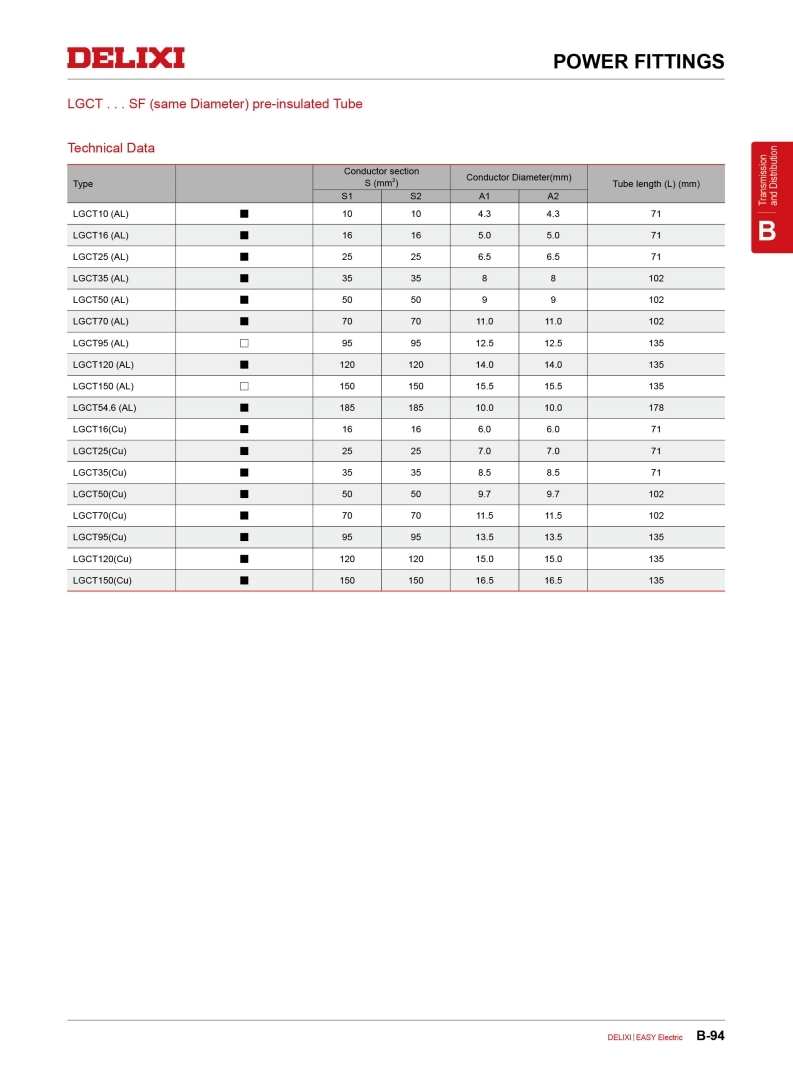

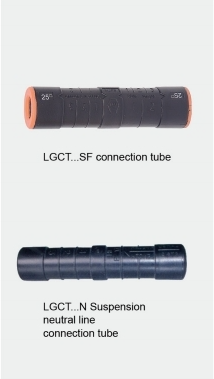

- LGCT.SF (same diameter) pre-insulated tube
- Color of front can identify section
- Used for connection of the same diameter phase line and suspended medium line (LGCT.N) below 1KV
- Apply to Conductor range: 10-150mm Aluminium tube is Compression connectors forphase, Aluminium alloy tube is Compression connectors for neutral.
- Apply to : Alu./Alu.,Alu./Cu., Cu./Cu.
- Anti-pressure, waterproof (6KV/ min.under water)

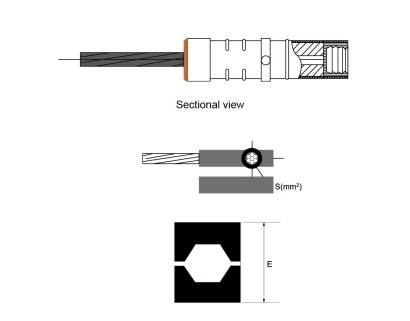

- sleeve marked clearly : pressing time and sequenee, wire length, wire section and pressing mould.
Technical Data
| mm² | Color mark |
| 10 | Green |
| 16 | Blue |
| 25 | Orange |
| 35 | Red |
| 50 | Yellow |
| 54.6 | Black |
| 70 | White |
| 80 | Milk white |
| 95 | Grey |
| 120 | Pink |
| 150 | Purple |
