HYTB On-site Reactive Compensation Intelligent Box

HYTB

HYTB intelligent on-site reactive compensation box is special designed for out-door type, IP44 grade, suitable to parallel connect correct the power factor, less power loss and stabilize voltage, energy-saving. It is out-door type, mainly use for commericial building, villa, apartment, electricity distribution system for PF correction.

Quantity

Contact Now

add to cart

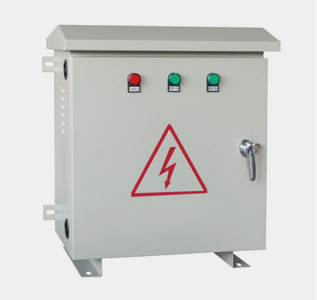

phase power saving device

Application

Three phase power saving device is special designed for out-door type, IP44 grade, suitable to parallel connect correct the power factor, less power loss and stabilize voltage, energy-saving. This intelligent box is out-door type, mainly use for commericial building, villa, apartment, electricity distribution system for PF correction. Customized reactive intelligence for sale supplier in China, with reactive intelligence design team. Buy bulk and wholesale medals from us.

Technical Data

Condition: Altitude ≤ 2000m, Ambient Temp: -25°C ~+60°C
Humidity ≤ 90% at 35°C
Rated Voltage: 380 ± 20% VAC 50/60 Hz(other rated voltage production on requested)
Rated Insulation Voltage: AC 660V
Rated Capacitor: 5-40kvar
Capacity Tolerance: -5%~+10%
Tangent of loss: tan δ ≤ 0.1%
Max.Over-Voltage: 1.1 x Un(only 8 hours with in 24 hours)
Max.Over-Current: 1.3 x 1ln
Protection: IP44, Class 3
Note: Special made according to customers' request

Exterior and Mounting Size(mm)

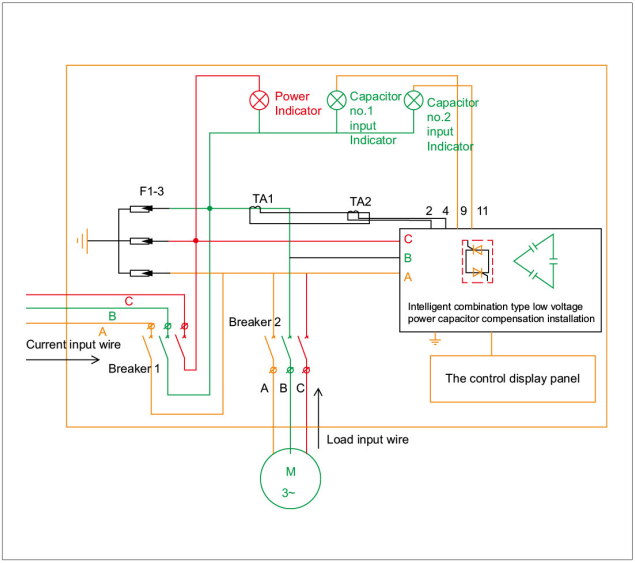

Connection Diagram
