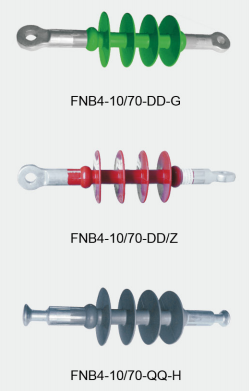

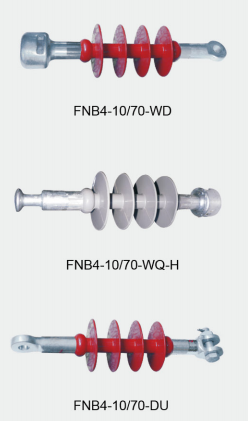

FNB Series 11-33kV Composite Insulator Tension Insulator

The composite insulator is suitable for use in polluted areas, especially in heavily polluted areas. They have high tensile strength, good anti-pollution performance, easy to install and use. They use various power fittings connection structures and are tightly connected with them. We supply tension insulator for different application scenarios. As a supplier, our company will offer you a bargain price. Contact us now!

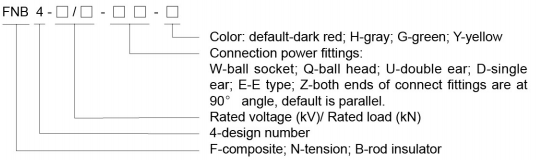

Model description

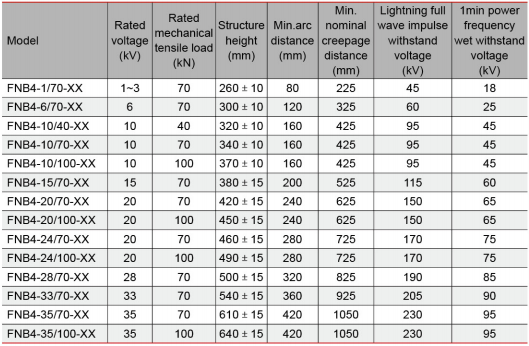

Technical parameters

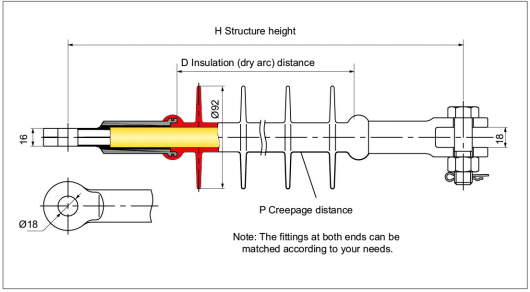

Structure diagram

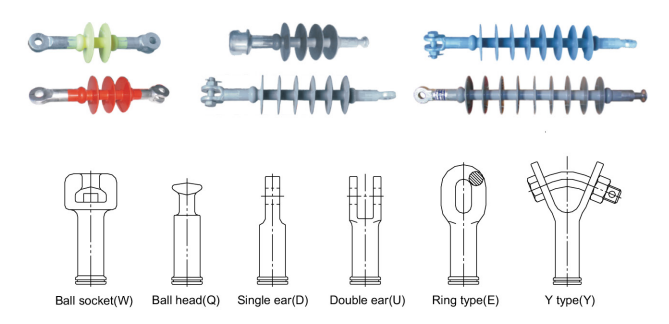

Type list of connect fittings at both ends

1. Please indicate the letters in model according to the required fittings at both ends;
2. Both ends can be customize and matched according to user requirements;
3.The color of silicone rubber is red as the default, and colors such as gray, green, yellow, blue, and black can also be selected.
