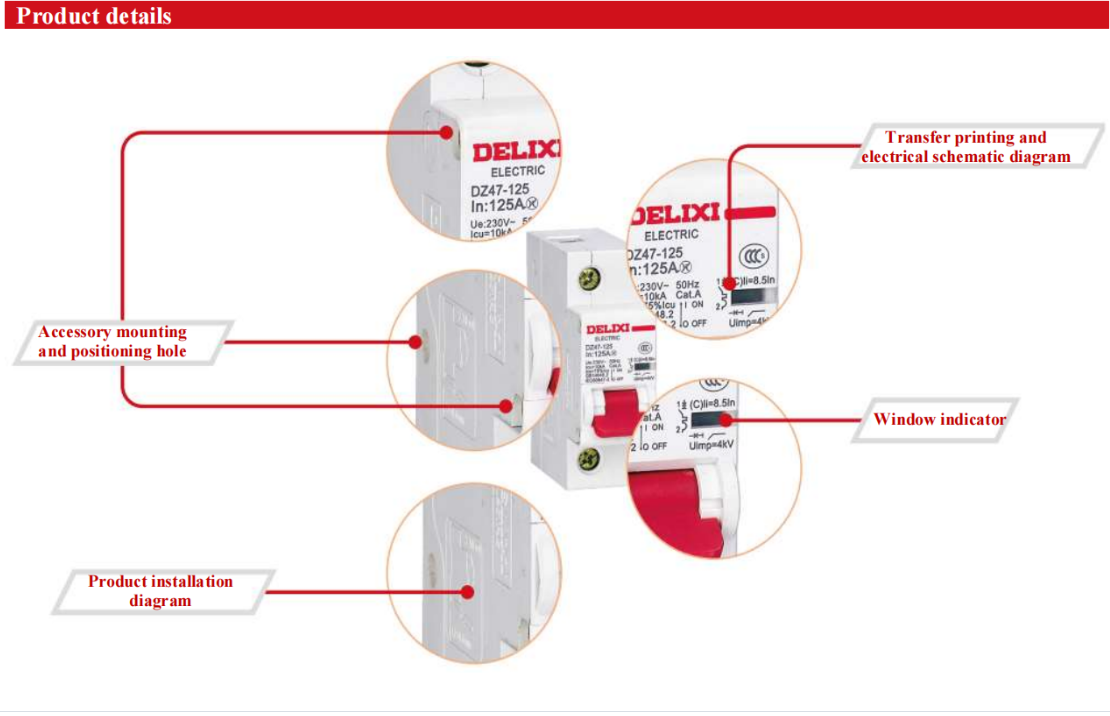

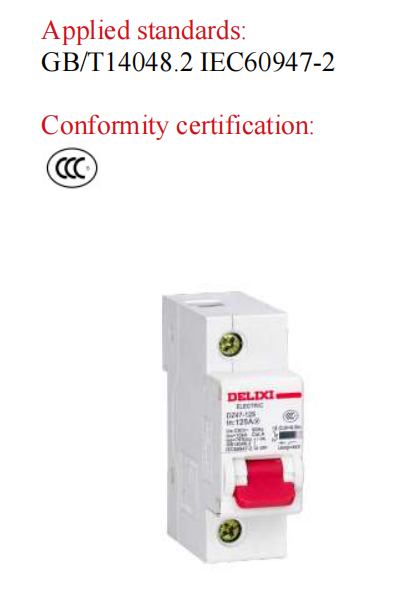

Delixi DZ47-125 high-current circuit breaker
DZ47-125
Quantity

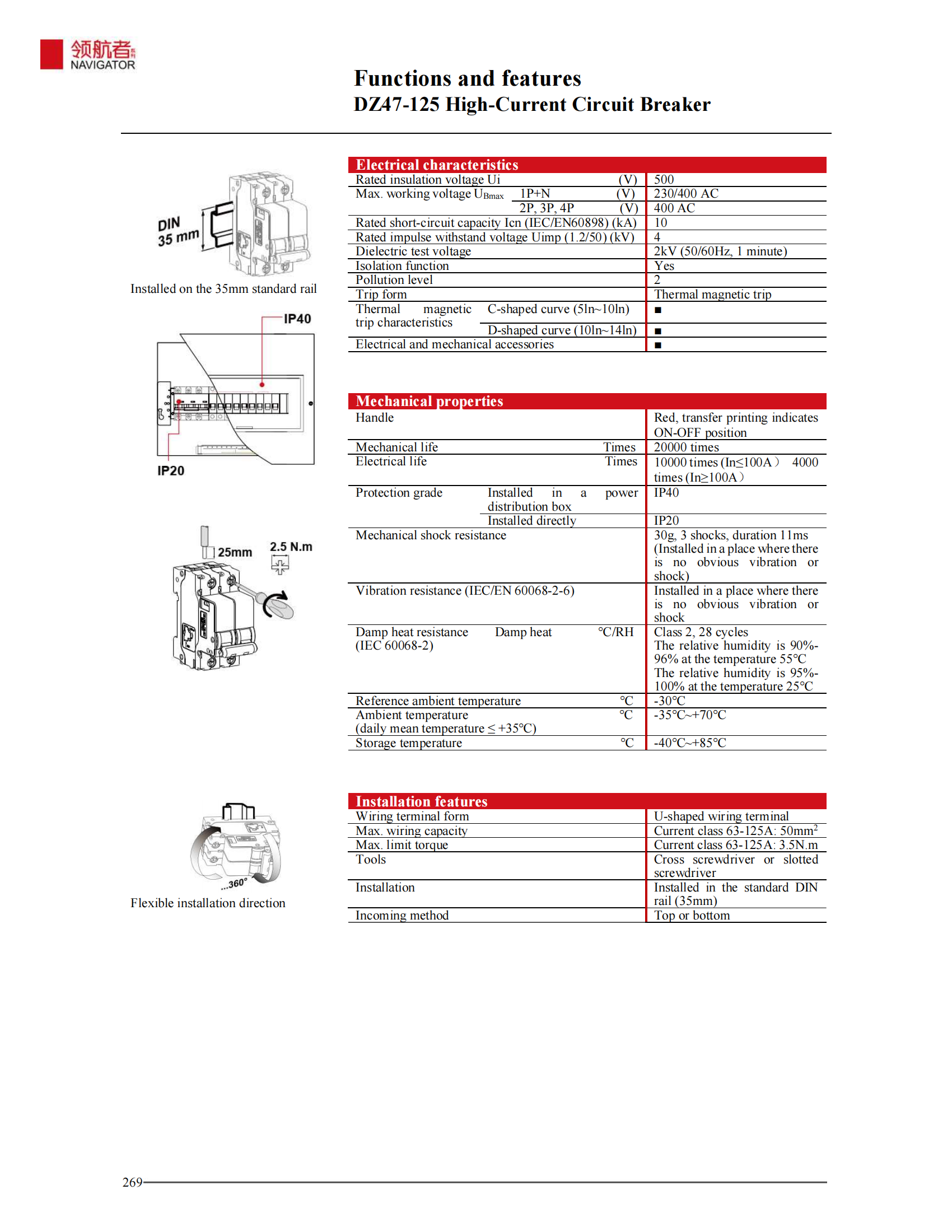

DZ47-125 High-Current Circuit Breaker Has the Following Functions
- Short-circuit protection
- Overload protection
- Isolation function
Main Features
| Rated working voltage (V) | 1P: 230/400 AC |
| 2P, 3P, 4P: 400AC | |
| Rated current (A) | 63-125 |
| Rated frequency (Hz) | 50 |
| Number of poles | 1P, 2P, 3P, 4P |
| Breaking capacity (kA) | 10 |
