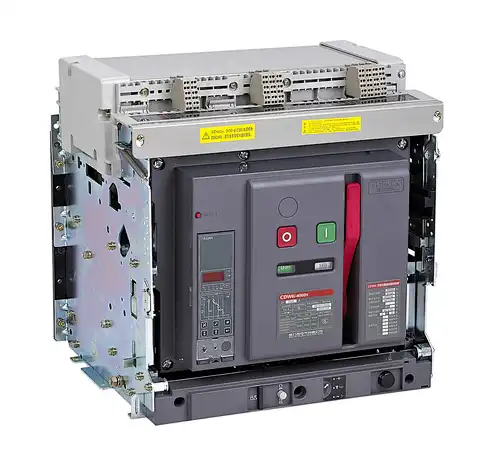

CDW6i Air Circuit Breaker
CDW6i
Quantity

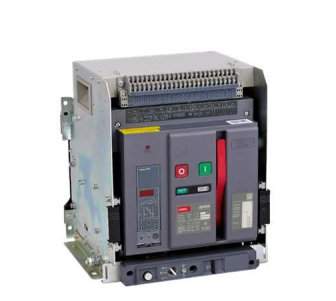

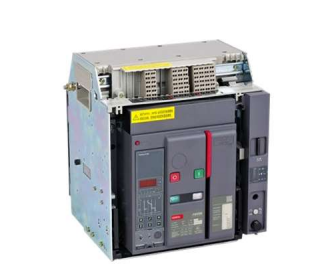

Low Voltage Distribution CDW6I Air Circuit Breaker

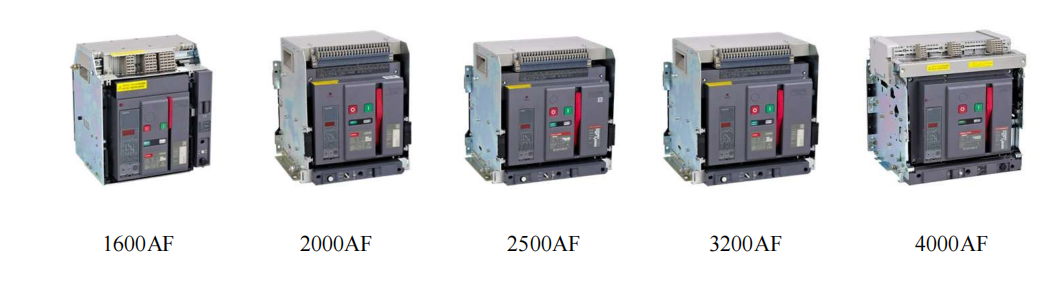

- Rack class: 1600AF,2000AF,2500AF,3200AF,4000AF.6300AF
- Breaking grade: N&H&M
- Rated currentin (a): 400~6300
- The rated voltage AC UE (v): 220v/230v/240v/380v/400v/415v/440V/480V/500V/525V/550V/660V/ 690V800V/900V/950V/1000V/1140VU( V): 1000 VN&Htype), 1250V (Mtype)
- Polar Poles: 3 & 4
- Installation mode: fixed type & drawer type
- Wiring mode: horizontal rear connection and vertical rear connection
Intelligent tripping device

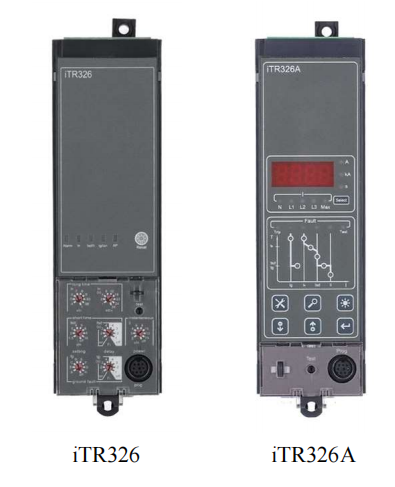

- iTR326 type (basic type)
Basic function: protection function (L, S, I&G)
- Type iTR326A (standard)
Basic protection
Basic measurement
Auxiliary function
Basic measurement
Auxiliary function
- iTR326H(Advanced)
Basic+Advanced Protection
Multiple measurement
Auxiliary function
Special function
Communication function
Multiple measurement
Auxiliary function
Special function
Communication function
Attachment
- Locking, interlocking and protection accessories: button protection lock, mecha door interlock and safety baffle lock.
- Indication accessories: prepare closing contact, three-position signal contact, auxiliary contact.
- Remote operating accessories: opening and closing coil, under-voltage coil, electrical mechanism, electrical reset, and reclosing with voltage detection.
- Circuit protection accessories: N-phase external transformer, grounding transformer.
- Attachment type: horizontal, vertical, extended row and extended row
