CDI-EM60 Series Mini Type VFD
CDI-EM60
The CDI-EM60 series inverter is a mini-type low-power single-phase inverter with optimum SVC and V/F control, stable performance and simplified functions. It reserves the configuration most-frequently used by users, and can be extended withseveral I/O and communication interfaces.
Quantity
Introduction
The CDI-EM60 series inverter is a mini-type low-power single-phase inverter with optimum SVC and V/F control, stable performance and simplified functions. It reserves the configuration most-frequently used by users, and can be extended withseveral I/O and communication interfaces.
Technical Characteristics
♦ Small size and easy operation; Embedded with DC brake function and can have optionalexternal brake unit; Accuracy of stop position.
♦ Separate keyboard that supports hot plug and can be pulled out to a distance of 50m at most;a copy keyboard with parameter control is optional.
♦ Extensible RS485 communication interface which enables standard MODBUS-RTU communication and can be compatible with a variety of host computers.
♦ Long service-life with a controllable fan; the AVR (Automatic Voltage Regulation) function ensures large output torque in case of low input voltage.
♦ Multiple protection functions to ensure safe and reliable operation of the motor.
♦ All standard products have been treated with conformal coatings.
♦ Air-duct isolated by windshields to ensure good thermal dissipation and thus significantly improved adaption to the environment.
Applications
Mainly applies to low-power non-VC situations with demanding requirements for input/output.
Die-cutting machine, carving machine, textile machine, glass-making machine, dyeing machine, book sewer, automatic production line and food machine.
Accessories
EM60-IO expansion card, EM60-485 communication expansion card, internal brake unit.
The CDI-EM60 series inverter is a mini-type low-power single-phase inverter with optimum SVC and V/F control, stable performance and simplified functions. It reserves the configuration most-frequently used by users, and can be extended withseveral I/O and communication interfaces.
Technical Characteristics
♦ Small size and easy operation; Embedded with DC brake function and can have optionalexternal brake unit; Accuracy of stop position.
♦ Separate keyboard that supports hot plug and can be pulled out to a distance of 50m at most;a copy keyboard with parameter control is optional.
♦ Extensible RS485 communication interface which enables standard MODBUS-RTU communication and can be compatible with a variety of host computers.
♦ Long service-life with a controllable fan; the AVR (Automatic Voltage Regulation) function ensures large output torque in case of low input voltage.
♦ Multiple protection functions to ensure safe and reliable operation of the motor.
♦ All standard products have been treated with conformal coatings.
♦ Air-duct isolated by windshields to ensure good thermal dissipation and thus significantly improved adaption to the environment.
Applications
Mainly applies to low-power non-VC situations with demanding requirements for input/output.
Die-cutting machine, carving machine, textile machine, glass-making machine, dyeing machine, book sewer, automatic production line and food machine.
Accessories
EM60-IO expansion card, EM60-485 communication expansion card, internal brake unit.

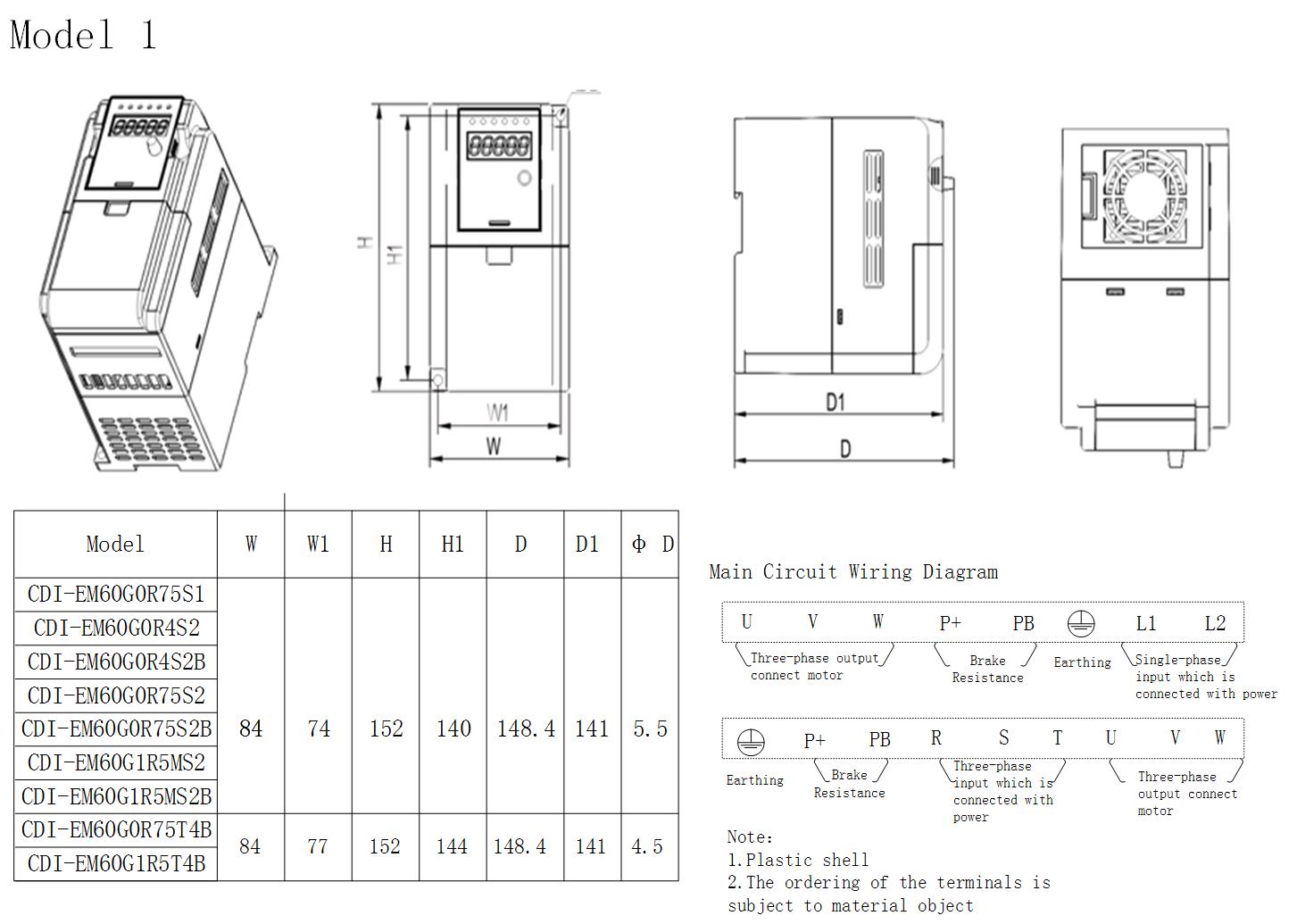

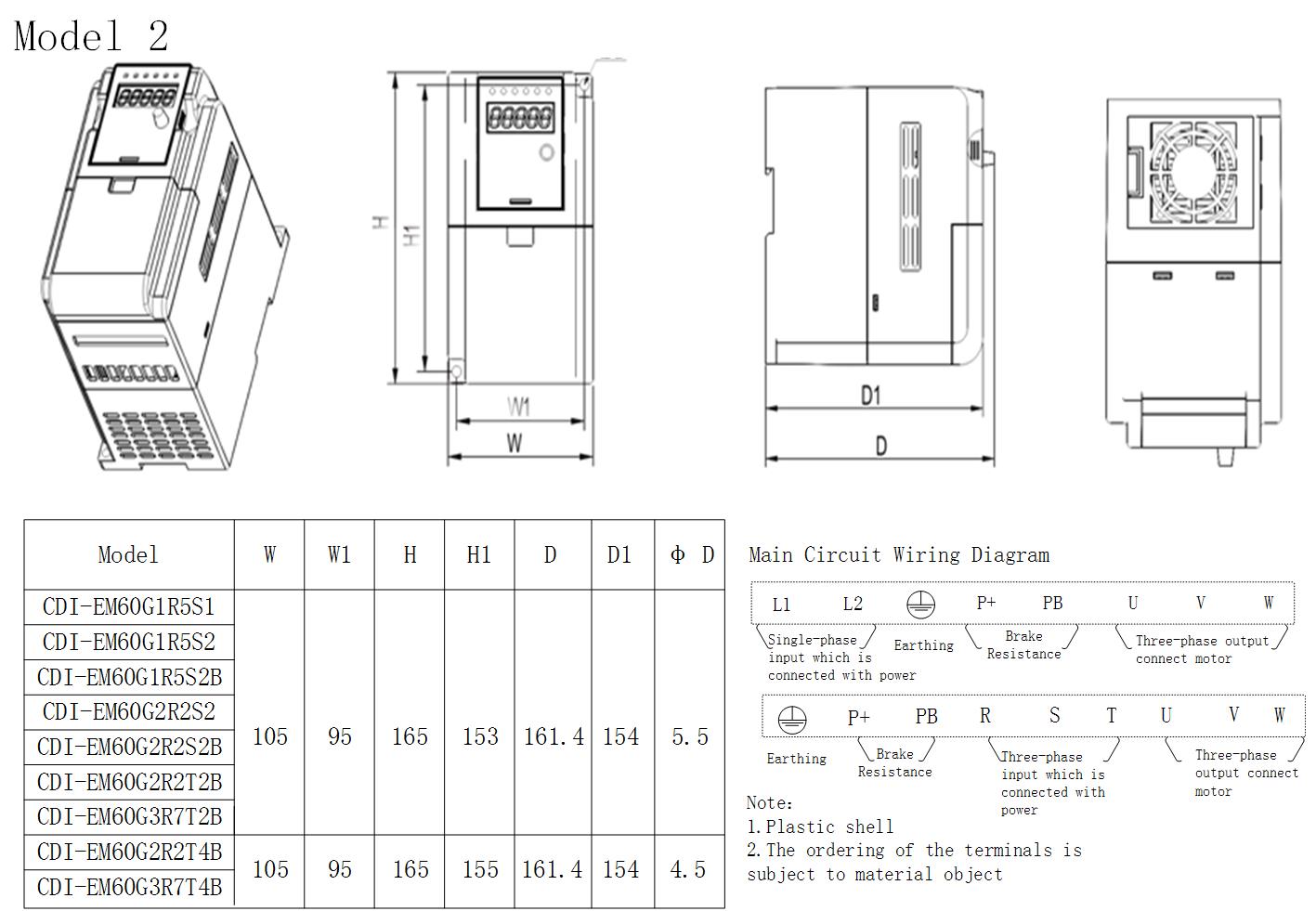

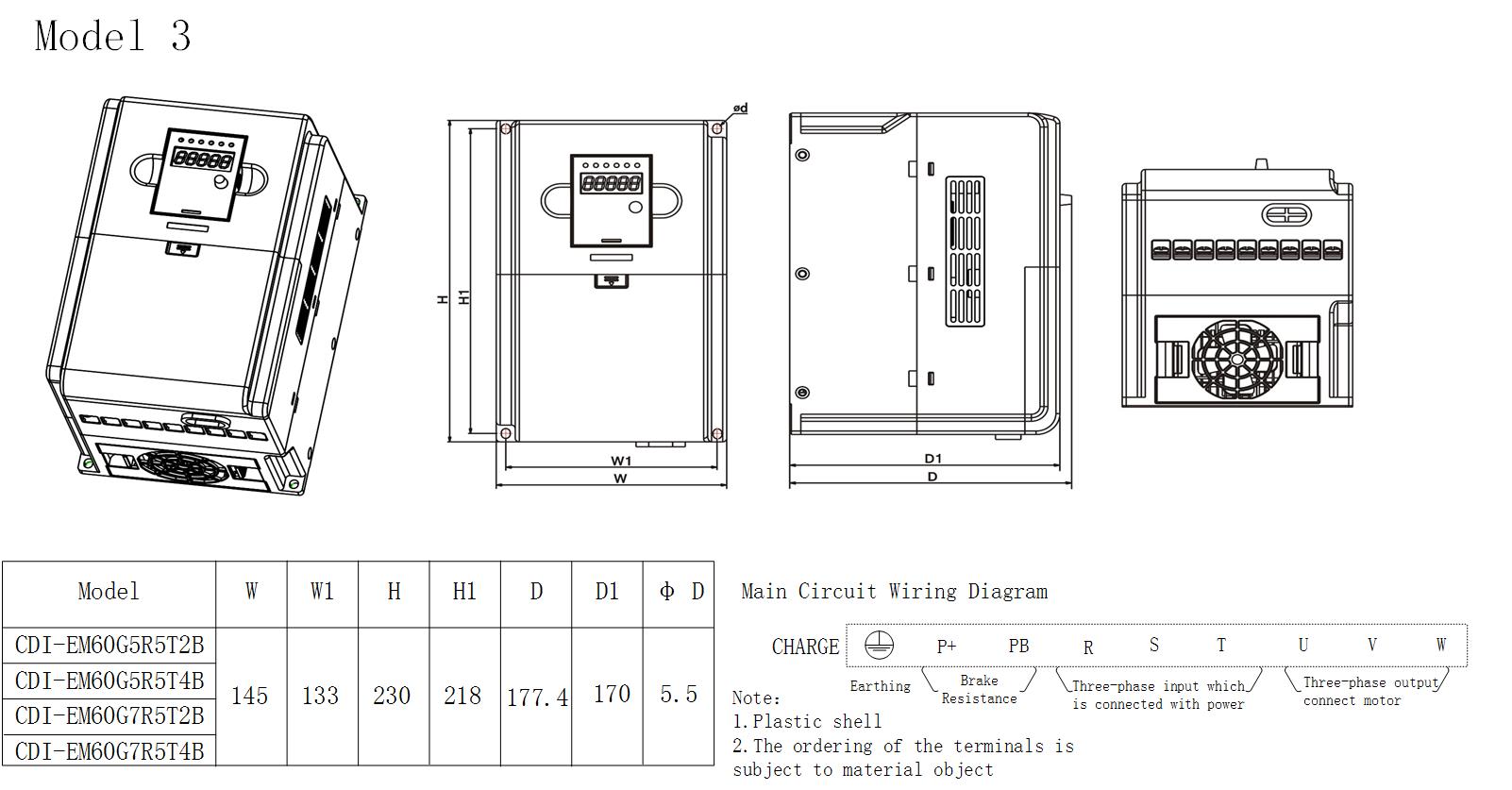

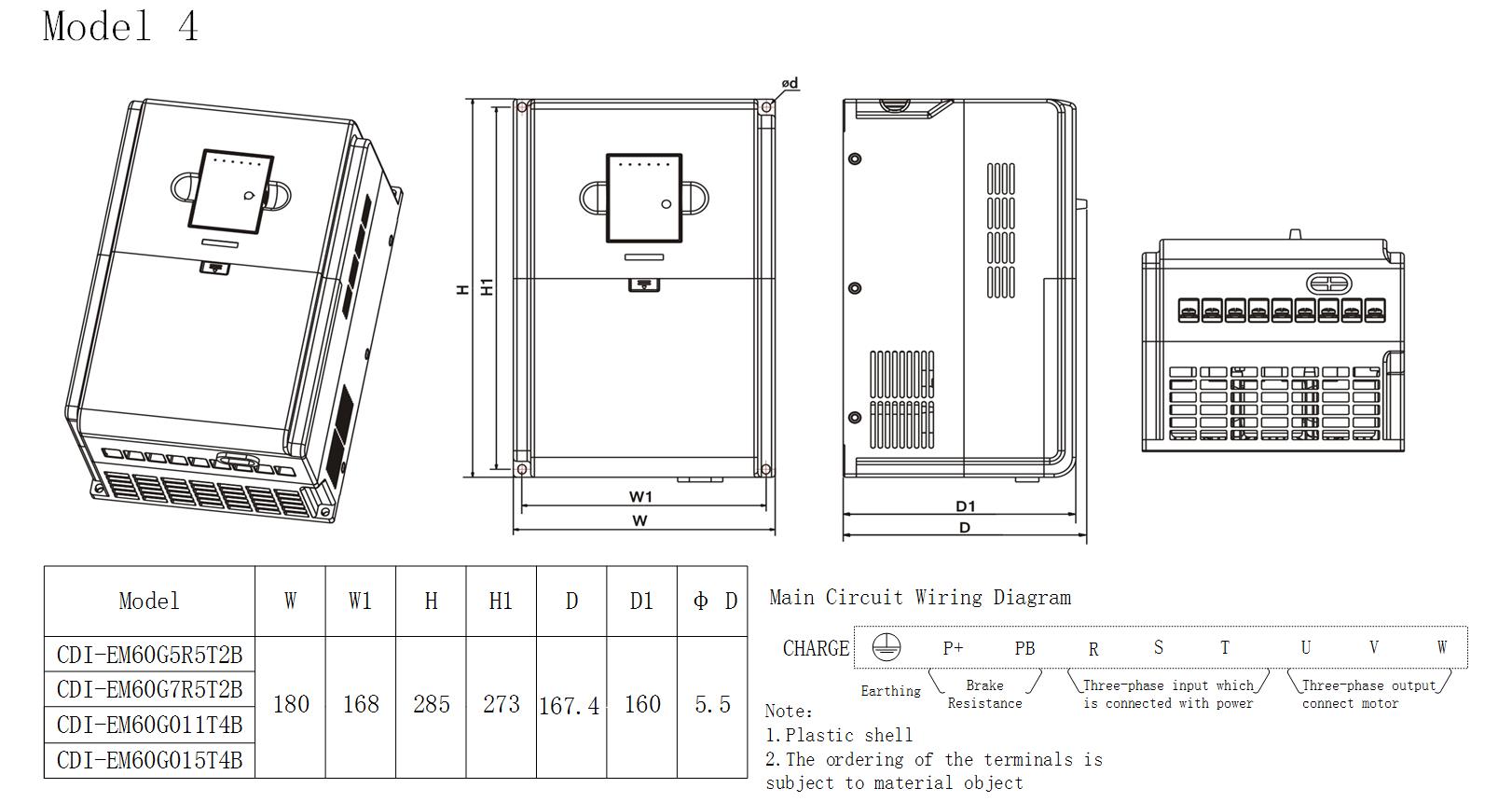

| Frequency inverter type | Rated capacity | Rated input current | Rated output current | Adaptive motor |
| (kVA) | (A) | (A) | (kW) | |
| S1 (Single-phase 110V, 50/60Hz) | ||||
| CDI-EM60G0R75S1 | 1.4 | 26.25 | 7 | 0.75 |
| CDI-EM60G1R5S1 | 2.5 | 48.75 | 13 | 1.5 |
| S2 (Single-phase 220V, 50/60Hz) | ||||
| CDI-EM60G0R4S2 | 0.8 | 5 | 3 | 0.4 |
| CDI-EM60G0R4S2B | 0.8 | 5 | 3 | 0.4 |
| CDI-EM60G0R75S2 | 1.5 | 9 | 5 | 0.75 |
| CDI-EM60G0R75S2B | 1.5 | 9 | 5 | 0.75 |
| CDI-EM60G1R5MS2 | 2 | 11.7 | 6.5 | 1.5 |
| CDI-EM60G1R5MS2B | 2 | 11.7 | 6.5 | 1.5 |
| CDI-EM60G1R5S2 | 2.7 | 15.7 | 7 | 1.5 |
| CDI-EM60G1R5S2B | 2.7 | 15.7 | 7 | 1.5 |
| CDI-EM60G2R2S2 | 3.8 | 27 | 10 | 2.2 |
| CDI-EM60G2R2S2B | 3.8 | 27 | 10 | 2.2 |
| T2（Three-phase 220V, 50/60Hz） | ||||
| CDI-EM60G1R5T2B | 4 | 5.8 | 7 | 1.5 |
| CDI-EM60G2R2T2B | 5.9 | 10.5 | 10 | 2.2 |
| CDI-EM60G3R7T2B | 8.5 | 15.5 | 17 | 3.7 |
| CDI-EM60G5R5T2B | 17 | 26 | 25 | 5.5 |
| CDI-EM60G7R5T2B | 21 | 35 | 32 | 7.5 |
| T4（Three-phase 380V, 50/60Hz） | ||||
| CDI-EM60G0R75T4B | 1.5 | 3.4 | 3 | 0.75 |
| CDI-EM60G1R5T4B | 3 | 5 | 4.5 | 1.5 |
| CDI-EM60G2R2T4B | 4 | 5.8 | 6 | 2.2 |
| CDI-EM60G3R7T4B | 5.9 | 10.5 | 9.5 | 3.7 |
| CDI-EM60G5R5T4B | 8.5 | 15.5 | 13 | 5.5 |
| CDI-EM60G7R5T4B | 11 | 20.5 | 17 | 7.5 |
| CDI-EM60G011T4B | 17 | 26 | 25 | 11 |
| CDI-EM60G015T4B | 21 | 35 | 32 | 15 |
