CDKU-S Series Ultra-thin switching power supply
CDKU-S
CDKU-S series is a single output, ultra-thin high-efficiency low-power switching power supply. It adopts international full range AC input and ultra-thin appearance design, and can continuously output 5V, 12V, 15V, 24V, 36V, 48Varbitrary DC, and can provide AC/DC power solution for a variety of industrial applications.
Delivery
FOB
Quantity
Features：
- 30mm Ultra-thin design, easy installation and light weight；
- 90~264VAC full range of AC input, high efficiency, and small output ripple;
- Low power design, low thermal consumption, and no-load power consumption as low as 0.2-1.0W.
- High-frequency PWM control technology, fast response;
- High-power MOS tube drive, stable and reliable operation, strong overload capability; All products pass the 100% full load aging test;
- Complete protection: with protection against overvoltage, overload, overheat, short circuit.
Standards:
GB 4943.1

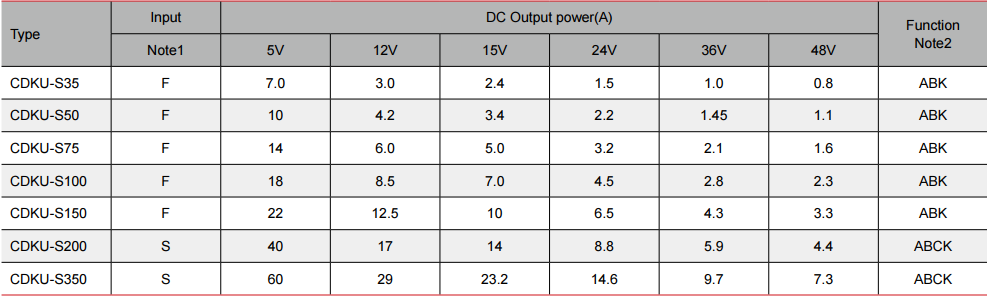

Selection guide:
Remarks：CDKU-S35W/12Vultra-thin low power consumption switching power supply,code：CDKUS3512; Can be directly interchanged with LRS series switching power supply；
Note 1: 85-132/170-264VAC selection method: F: full range; S: switch selection.
Note 2: Function A: Overload (overcurrent) short circuit protection; B: Output over voltage protection; C: Over temperature protection; K: Output LED display.

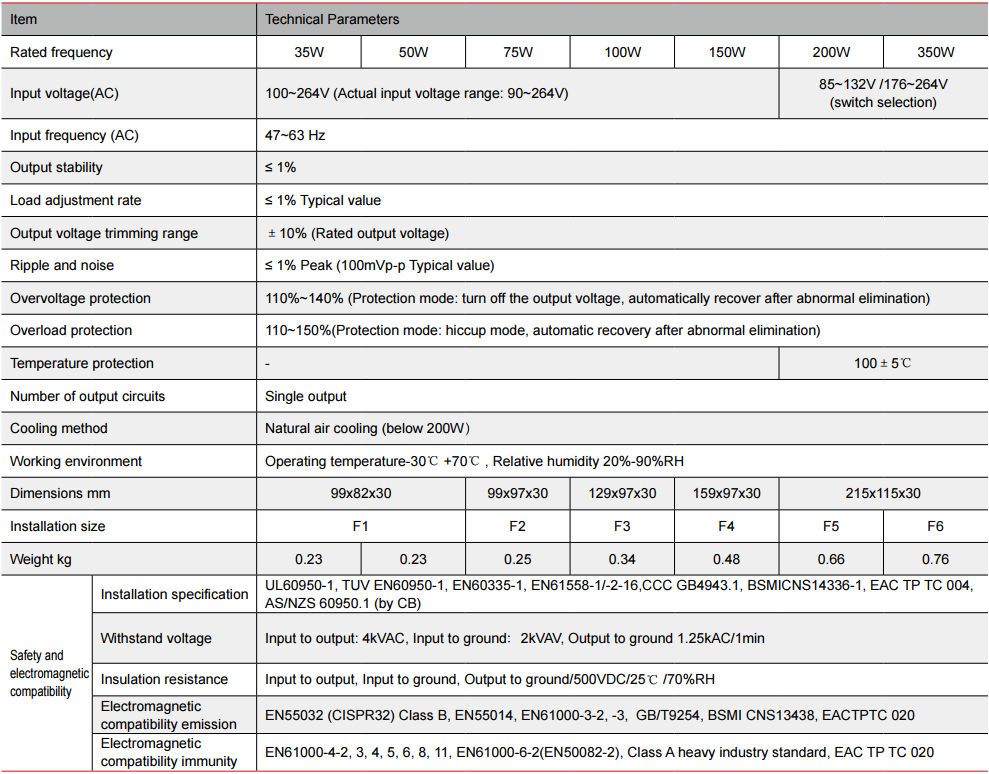

Main technical parameters and performance:
